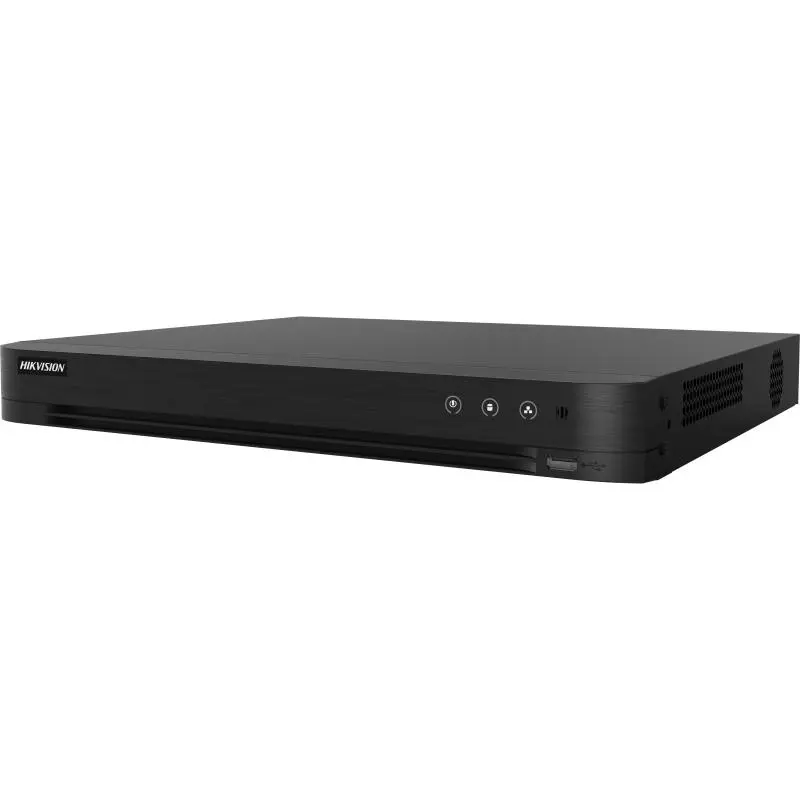

DVR DS-7216HGHI-M1(STD) 16 Channel

Specification

• Video and Audio

• IP Video Input
  2-ch (up to 18-ch)
  Up to 5 MP resolution
  Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input
  16-ch
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback16-ch

• Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution1080p lite/720p/VGA/WD1/4CIF/CIF
• Frame Rate
  Main stream:
  For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
  For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
  For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  Sub-stream:
  For 1080p and 720p stream access: CIF/QVGA@15fps
  For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Network

• Remote Connection128
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1, SATA interface
• CapacityUp to 6 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0

• General

• Power Supply12 VDC, 2 A
• Consumption≤ 18 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
• ≤ 2.2 kg (4.9 lb)
